Nextion Enhanced 5.0'' HMI Intelligent Smart USART UART Serial Touch TFT LCD Module Display Panel for Arduino Raspberry Pi

Nextion Enhanced 5 0 HMI Touch Display Module For Arduino Raspberry Pi
  • Seller Aihasd Online Store
  • List Price US $73.43piece
  • Sale Price US $73.43piece
  • Shipping Free Shipping
  • You Save US $0.00piece0% off
  • Ratings 5.0 (55)

Item Specifics

Brand NameAihasd

Product Description

The Nextion Enhanced versions are more powerful. Compare to the basic Nextion displays, the new ones have added some new functions: support built-in RTC, support save data to Flash, support GPIO, larger flash capacity and larger CPU clock.
Nextion Enhanced Version is a powerful 5.0\'\' HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM. With GPIO supported, now you can use Nextion to control external devices.
Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. It is the best solution to replace the traditional LCD and LED Nixie tube.
Nextion includes hardware part (a series of TFT boards) and software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets you avoid the hassle of wiring. We notice that most engineers spend much time in application development but get unsatisfactory results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce 99% of your development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It\'s easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

Support built-in RTC
Support GPIO
SD Card interface: support max max 32G Micro TF/SD card (FAT32 file format)
Flash data storage space: 32MB
EEPROM: 1024 byte
RAM: 8192 byte
Instruction buffer: 1024 byte
Color:65K (65536) colors
Resolution:800×480 pixel
Adjustable Brightness:0~230 nit, the interval of adjustment is 1%

Visual Area: 108mm(L)×64.8mm(W)
Layout size: 133.5(L)×84(W)×6.8(H)
Touch type: Resistive
Backlight: LED
Backlight lifetime (Average): >30,000 Hours
Net Weight: 128 g
Recommended power supply: 5V 1A

Nextion User Manual:

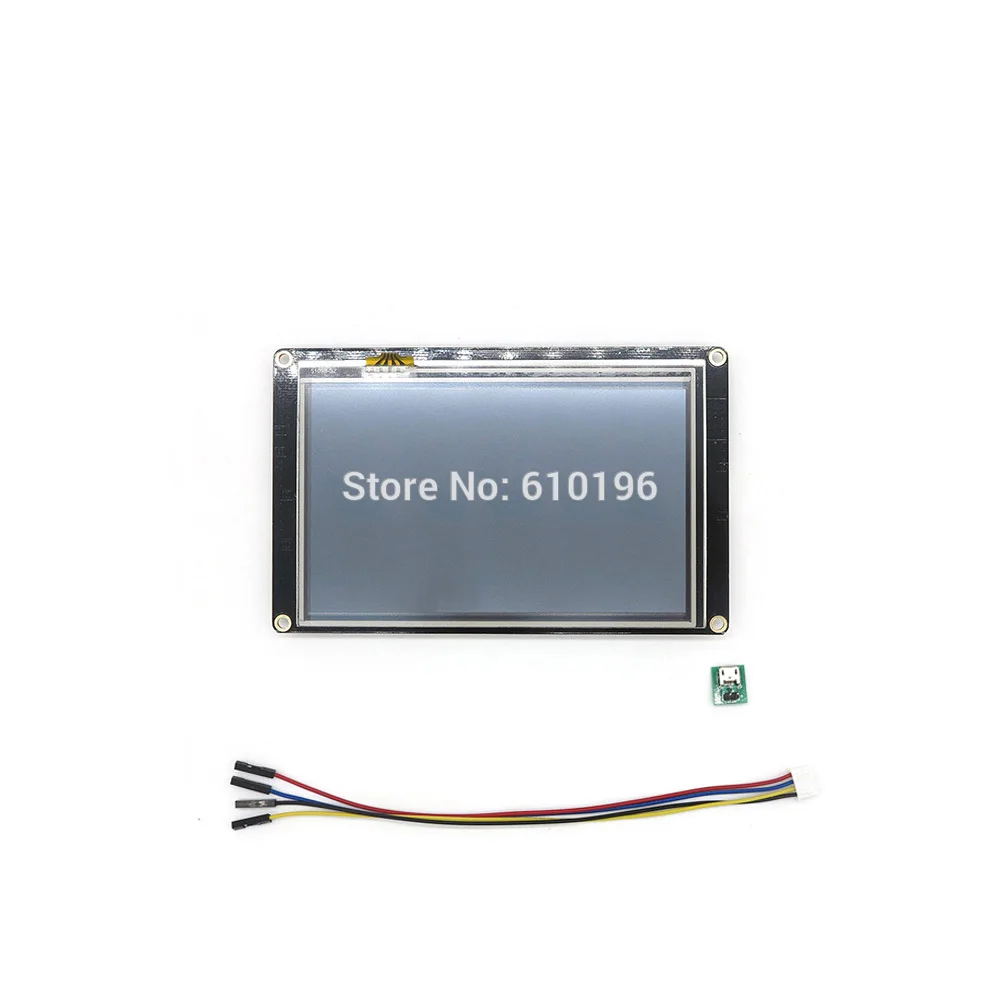

Package includes:
1 X 5.0" Nextion Enhanced HMI Display
1 X power supply test board
1 X 4-pin grove cable
Packed Safely in Bubble Bag.
