LG01 P LoRa Gateway NEW 868MHZ 915MHZ 433MHZ

LG01 P LoRa Gateway
  • List Price US $66.00piece
  • Sale Price US $66.00piece
  • Shipping Free Shipping
  • You Save US $0.00piece0% off
  • Ratings 4.7 (92)

Item Specifics

TypeVoltage Regulator

Product Description

LG01-P 868: LoRa Gateway, best tuned at 868M frenquency
LG01-P 915: LoRa Gateway, best tuned at 915M frenquency
LG01-P 433: LoRa Gateway, best tuned at 433M frenquency
Choose the frequency you need.
Send 915M by default

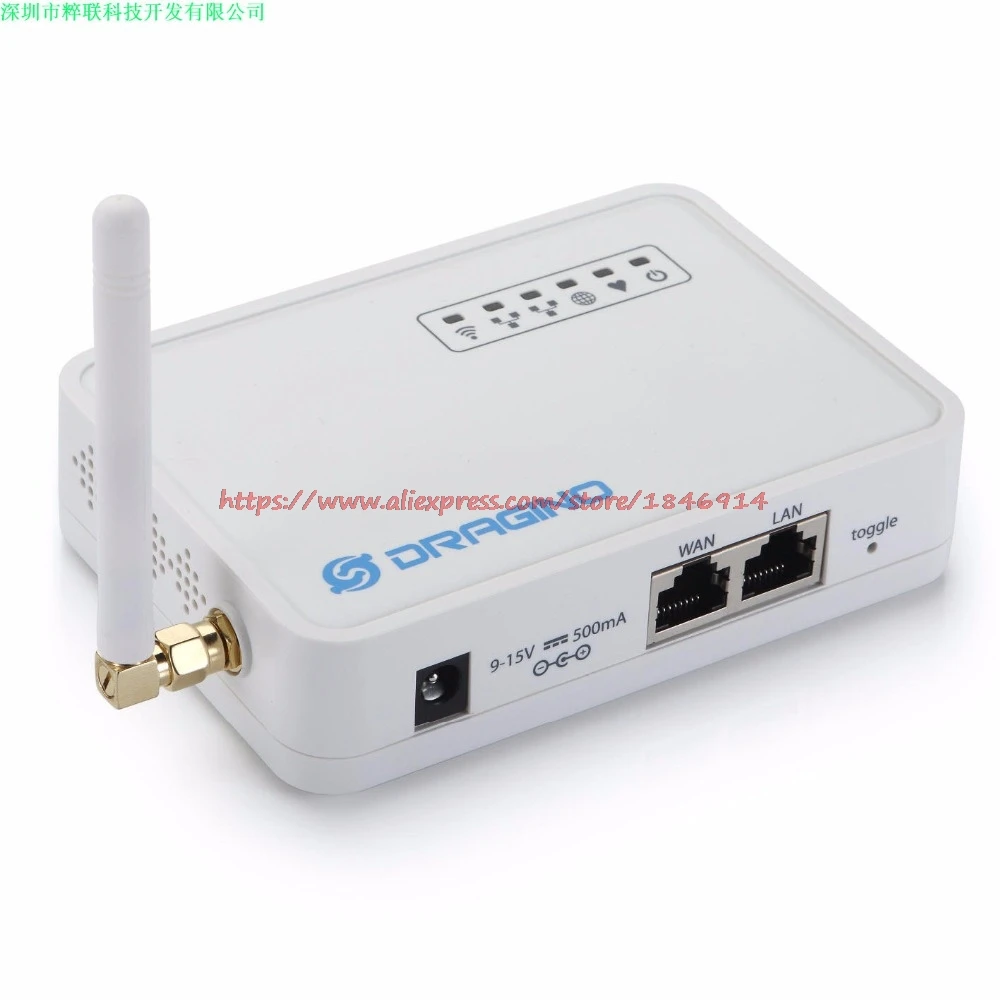

The LG01-P is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity.

LG01-P has WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

LG01-P runs Open Source OpenWrt system, user are free to modify the source file or compile the system to support their customized applications.


Open Source OpenWrt system

Low power consumption

Firmware upgrade via Web

Software upgradable via network


Built-in web server

Managed by Web GUI, SSH via LAN or WiFi

Support WiFi AP, Client or Ad-Hoc(Mesh) mode

Internet connection via LAN, WiFi, 3G or 4G

Failsafe design provides robustly system

LoRa band available at 433/868/915/920 Mhz

Max range in LoRa : 5 ~ 10km


Wireless Alarm and Security Systems

Home and Building Automation

Automated Meter Reading

Industrial Monitoring and Control

Long range Irrigation Systems

GPS tracker,etc


Linux Side:

Processor: 400MHz, 24K MIPS

Flash: 16MB ; RAM: 64MB

MCU/LoRa Side:

MCU: ATMega328P

Flash:32KB, RAM:2KB

LoRa Chip: SX2176/78


10M/100M RJ45 Ports x 2

WiFi : 802.11 b/g/n

LoRa Wireless

Power Input: 12V DC

USB 2.0 host connector x 1

USB 2.0 host internal interface x 1
