CNC 3018 500mw/2500mw5500mw laser GRBL control Diy engraving ER11 machine, 3 Axis pcb Milling Wood Router 30x18

CNC 3018 500mw 2500mw5500mw Laser GRBL Control Diy Laser Engraving ER11 CNC Machine 3 Axis Pcb
  • Seller Yuser Laser Equipment Store
  • List Price US $212.22piece
  • Sale Price US $171.90piece
  • Shipping Free Shipping
  • You Save US $40.32piece19% off
  • Ratings 4.6 (74)

Item Specifics


Product Description

Part of the components and the core components have been assembled, only need to install the rack according to the installation instructions when you receive it ,then it can be used, the control board wiring is basically a connector, no professional knowledge.
machine parameters:
Control software:GRBL control
Construction :Aluminum + plastic
Profile Dimensions: 330*340*240mm (xyz does not contain the motor protruding part)
Stroke (engraving range): 240x180x40mm
Screw: T8 screw, lead 4mm, double copper nuts disappear badly
Stepping motor: 42 stepper motor.
Parameters: voltage: 12V, phase current 1.3A, phase resistance 2.1 ohms, torque 0.3N.m
Spindle: 775 Spindle motor (12-36V) 24V: 10000 rpm
Laser head: see package
Power supply: 24V 5A power adapter (input voltage 110-240V), simple and convenient
Countertop: 20100 Profile
Rack: 2020 profiles
Gray Part Material: Plastic
Control software: (two software optional ) GrblControl and laser software
Design software: all CAM (computer aided manufacturing) software can be
System requirements: windows XP SP3, win7, win8. (32/64 can be). Linux
Interface: USB
Standard :The complete set of the parts and tools
Engraving materials :Plastic, wood, acrylic, PVC, PCB and other soft materials

Control software

GRBL control

(software CD included in package as gift, or please contact seller to get download link)


Aluminum + plastic

Working area


Frame size



775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min

Step motor

1.3A 0.25N.m

Power supply

24V 5.6A

Supported system

Windows XP/ Win 7/ Win 8/ Win 10/ Linux

Laser (options)

500mw/2500mw 12V 405nm

5500mw 12V 450nm

Drill bits

Diameter: 3.175mm tip: 0.1mm length: 30mm

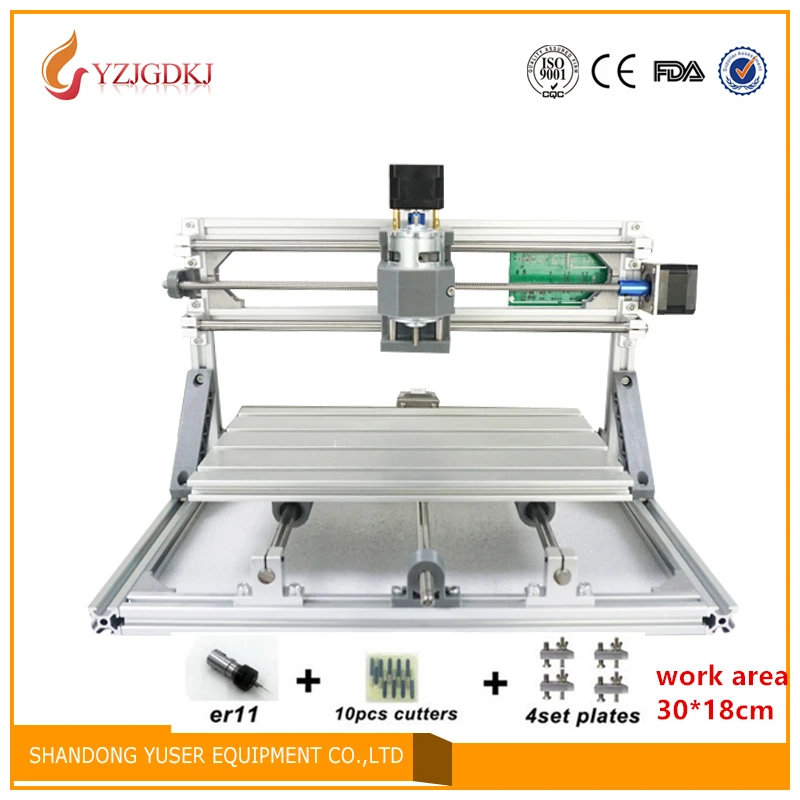

machine picture
laser head
software: for cnc machine for laser machine :
Engrave sample:
