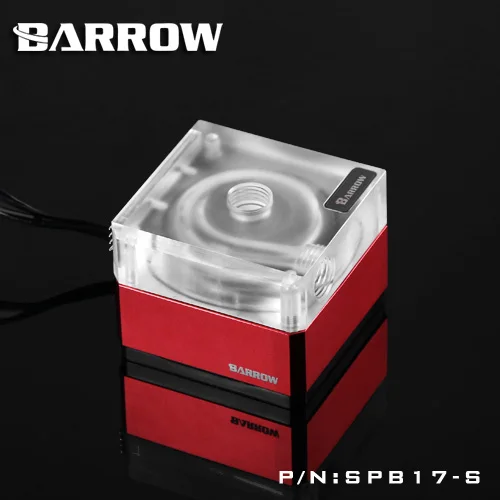

Barrow SPB17 S LRC RGB v1 17w Water Cooling Pump , PWM Speed control Can not directly assemble DDC tank modifications

Barrow 12V 17w Pump Water Cooling Pump Cooling System Water Pump Computer Speed SPB17 S
  • Seller FormulaMod Store
  • List Price US $51.10piece
  • Sale Price US $51.10piece
  • Shipping Free Shipping
  • You Save US $0.00piece0% off
  • Ratings 4.8 (97)

Item Specifics

TypeWater Cooling
Power1.56W
Fan Size120x120x25mm
Noise25dBA
BearingFluid Bearing
ApplicationComputer Case
Power Interface4PIN
Lines2 Lines
Fan Life30000 hrs
Brand NameBARROW
Fan Speed Control2500RPM
Air Volume30CFM
PackageNo
Heatsink MaterialOther

Product Description

Model Number: SPB17
Rated voltage: DC12V
Rated current: 1.4A
Rated power: 17W
Maximum lift: 5.5 meters
Maximum flow rate: 960L/H
Pump interface: G1/4
Temperature range: ≤60°C
Speed: 3000RPM
Working noise: <60 dB
Water pump line length: 60CM
Life: >50000 hours
Internal brushless permanent-magnet motor components with inner reference P2 are provided for internal drive. They are specifically tailored for water cooling systems. The overall square structure, compact size and strong performance provide sufficient circulating power for the system and maintain long-term stable operation.
Since August 2017, some product features have been upgraded. The upgrade contents are as follows:
1. The integrated wiring harness is changed to a separable plug-in wiring harness structure.
2. Increased the manual speed control function, the current set pump can either be manual speed control or PWM automatic speed control.
The factory default is PWM mode.
Activate the manual mode method:
Turn the speed control switch clockwise to enter the manual speed control mode. Rotate counterclockwise to the end, that is, close the manual mode to enter the PWM automatic speed control mode.
Acrylic cover material is more brittle, personal modification Do not over-tighten the screws and joints at the interface, it may lead to cracking at the thread
The pump cover has built-in RGB lighting components and is compatible with LRC light control systems. The pump cover and the water tank can be freely combined and separated, and different lengths of the pipe body components can be purchased later for upgrade and modification
